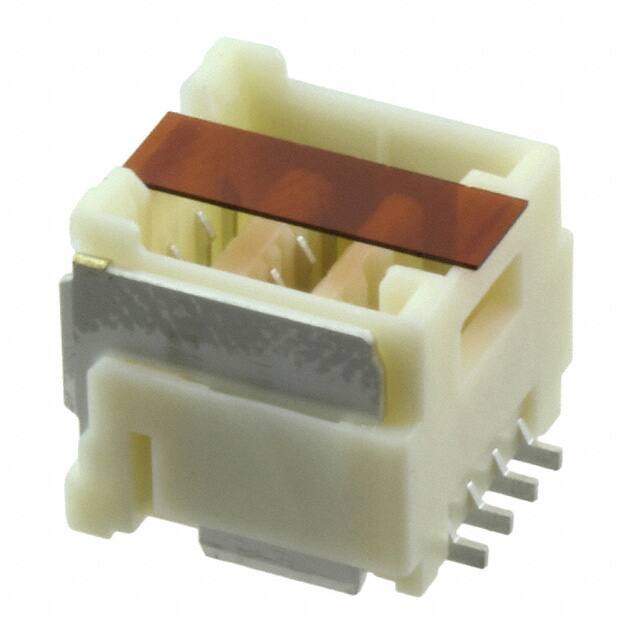

5031540890

Specifications

Contact Materials

Copper Alloy

Body Depth

0.346 inch

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Body Length Or Diameter

0.406 inch

Sıra Sayısı

2

Reference Standard

UL

Insulation Height

0.344 8.75mm

Insulation Color

Beige

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

2

Yayın Yılı

2011

Total Number Of Contacts

8

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Additional Feature

CLIK-MATE, POLARIZED

Pozisyon Sayısı

8

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Özellikler

Pick and Place, Solder Retention

Seri

CLIK-Mate 503154

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Mil Conformance

NO

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount

Contact Finish Mating

Tin

Contact Type

Forked

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Contact Gender

FEMALE

Iec Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Pitch Mating

0.059 1.50mm
