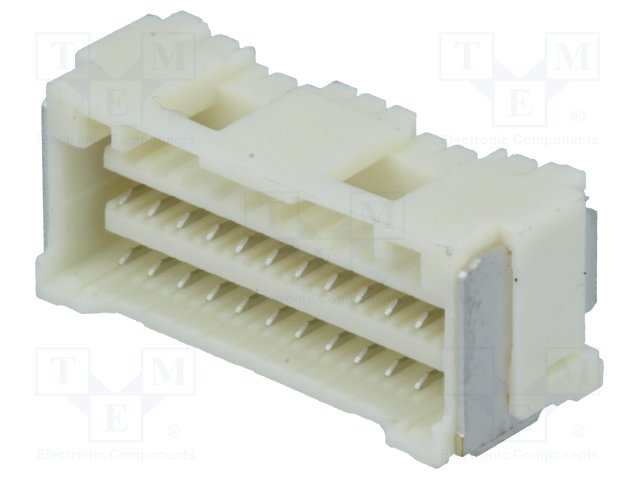

5031482490

Specifications

Yayın Yılı

2011

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

1

Empty Shell

NO

Total Number Of Contacts

24

Din Conformance

NO

Body Breadth

0.36 inch

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

21 Weeks

Number Of Conductors

ONE

Style

Board to Cable/Wire

Body Depth

0.344 inch

Contact Materials

Copper Alloy

Body Length Or Diameter

0.878 inch

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

2

Ul Flammability Code

94V-0

Insulation Height

0.360 9.14mm

Insulation Color

Beige

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Reference Standard

UL

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Filter Feature

NO

Insulation Resistance

500000000Ohm

Terminal

Solder

Mounting Option1

LOCKING

Seri

CLIK-Mate 503148

RoHS Durumu

ROHS3 Compliant

Özellikler

Pick and Place, Solder Retention

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Pozisyon Sayısı

24

Mil Conformance

NO

Number Of Positions Loaded

All

Reliability

COMMERCIAL
