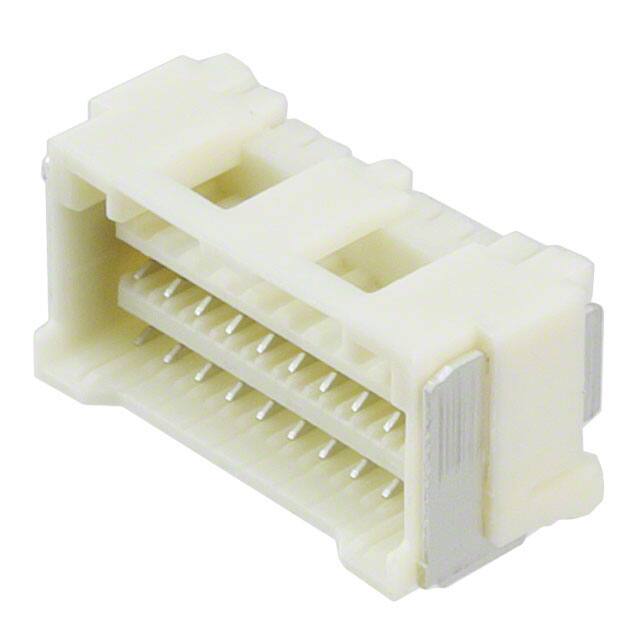

5031482090

Specifications

Özellikler

Pick and Place, Solder Retention

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503148

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Number Of Positions Loaded

All

Mil Conformance

NO

Reliability

COMMERCIAL

Contact Type

Forked

Number Of Contacts

20

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount, Right Angle

Iec Conformance

NO

Housing Color

Beige

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

Female

Uzunluk

19.3mm

ECCN Kodu

EAR99

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Filter Feature

NO

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Solder

Insulation Resistance

500000000Ohm

Radyasyon Dayanımı

No

Orientation

Right Angle

Style

Board to Cable/Wire

Glow Wire Compliant

Non-compliant

Contact Materials

Copper Alloy

Depth

9.55mm

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

100V

Sıra Sayısı

2

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Materials

Resin

Insulation Height

0.360 9.14mm

Row Spacing

1.5 mm
