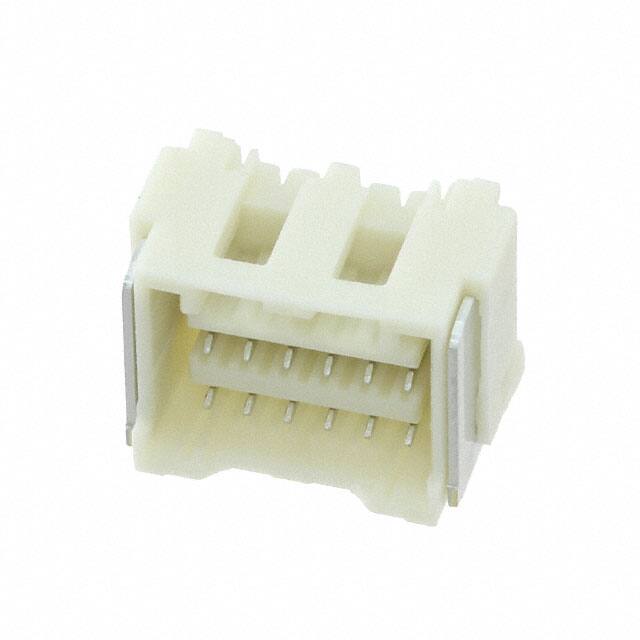

5031481290

Specifications

Sıra Sayısı

2

Reference Standard

UL

Ul Flammability Code

94V-0

Insulation Height

0.360 9.14mm

Insulation Color

Beige

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Body Depth

0.344 inch

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

15 Weeks

Number Of Conductors

ONE

Din Conformance

NO

Body Breadth

0.36 inch

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

1

Yayın Yılı

2011

Total Number Of Contacts

12

HTS Kodu

8536.69.40.30

Empty Shell

NO

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Contact Type

Forked

Contact Gender

FEMALE

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Iec Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Pozisyon Sayısı

12

Seri

CLIK-Mate 503148

RoHS Durumu

ROHS3 Compliant

Özellikler

Pick and Place, Solder Retention

Reliability

COMMERCIAL

Mil Conformance

NO
