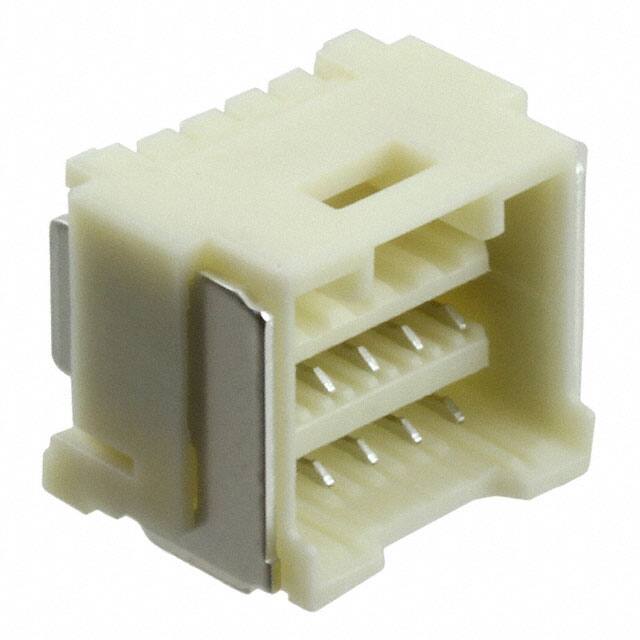

5031481090

Specifications

Filter Feature

NO

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Solder

Insulation Resistance

500000000Ohm

ECCN Kodu

EAR99

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Mounting Option1

LOCKING

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Mil Conformance

NO

Reliability

COMMERCIAL

Özellikler

Pick and Place, Solder Retention

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503148

Pozisyon Sayısı

10

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Iec Conformance

NO

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

FEMALE

Contact Type

Forked

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount, Right Angle

Empty Shell

NO

HTS Kodu

8536.69.40.30

Total Number Of Contacts

10

Yayın Yılı

2011

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

1

Additional Feature

POLARIZED

Body Breadth

0.36 inch

Din Conformance

NO

Number Of Conductors

ONE

Fabrika Tedarik Süresi

21 Weeks

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)
