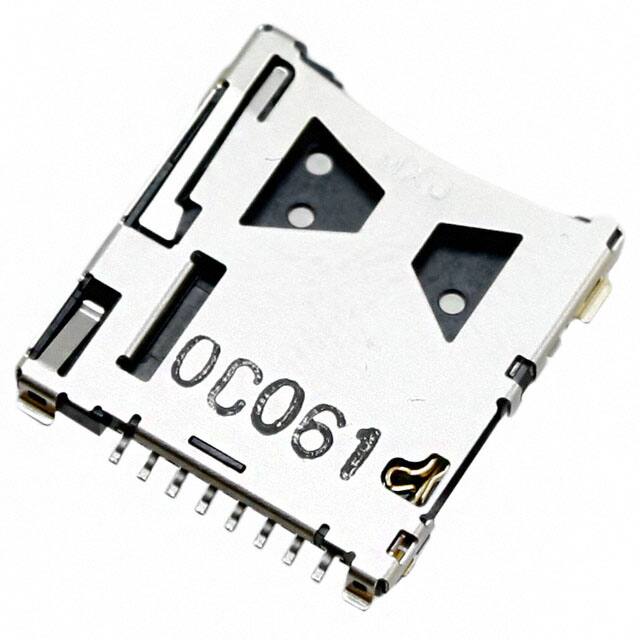

5027020891

Specifications

Özellikler

Switch

Mating Contact Pitch

0.043 inch

Total Number Of Contacts

8

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rated Current Signal

0.5A

Operating Temperature Max

85°C

Body Length Or Diameter

0.591 inch

Body Depth

0.618 inch

Body Breadth

0.06 inch

Fabrika Tedarik Süresi

7 Weeks

Number Of Pcb Rows

1

Contact Materials

NOT SPECIFIED

Height Above Board

0.060 1.52mm

Yayın Yılı

2010

Contact Gender

FEMALE

Connector Type

Connector and Ejector

Insertion Removal Method

Push In, Push Out

Sıra Sayısı

1

Card Type

Secure Digital - microSD™

Durability

10000 Cycles

Pcb Contact Pattern

RECTANGULAR

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Mounting Feature

Normal, Standard - Top

Pozisyon Sayısı

10 (8 + 2)

Ambalaj

Tape & Reel (TR)

Number Of Conductors

ONE

Operating Temperature Min

-25°C

Reliability

COMMERCIAL

Montaj Tipi

Surface Mount, Right Angle

Contact Pattern

RECTANGULAR

Terminal Adımı

1.0922mm

Seri

502702

Contact Finish Mating

NOT SPECIFIED

Number Of Ports

1
