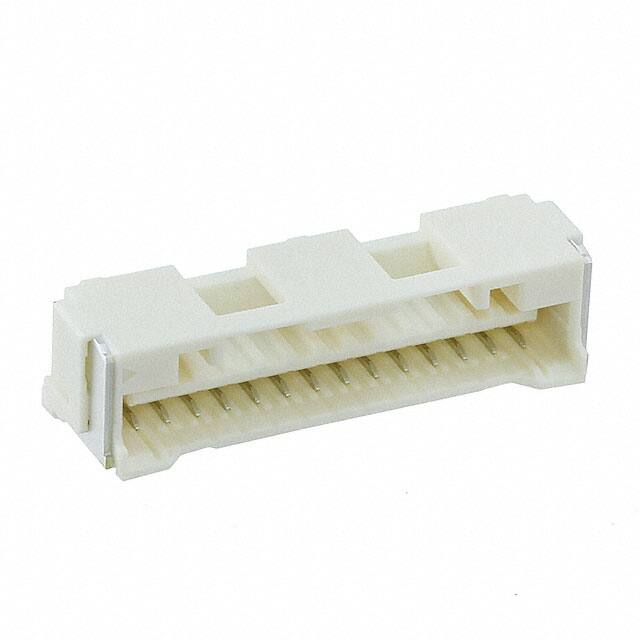

5025851470

Specifications

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

14

Insulation Color

Beige

Din Conformance

NO

Pitch Mating

0.059 1.50mm

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Contact Finish Mating

Tin

Seri

CLIK-Mate 502585

Style

Board to Cable/Wire

Terminal

Solder

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Total Number Of Contacts

14

Özellikler

Pick and Place, Solder Retention

Contact Finish Thickness Post

39.4μin 1.00μm

Fabrika Tedarik Süresi

21 Weeks

Contact Type

Forked

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Filter Feature

NO

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Insulation Materials

Resin

Contact Gender

FEMALE

Yayın Yılı

2010

Iec Conformance

NO

Kurşunsuz Kodu

yes

Mil Conformance

NO

Connector Type

Receptacle

Çalışma Sıcaklığı

-40°C~105°C

Insulation Height

0.250 6.35mm

Sıra Sayısı

1

Applications

Automotive, General Purpose, Industrial, Lighting, Medical
