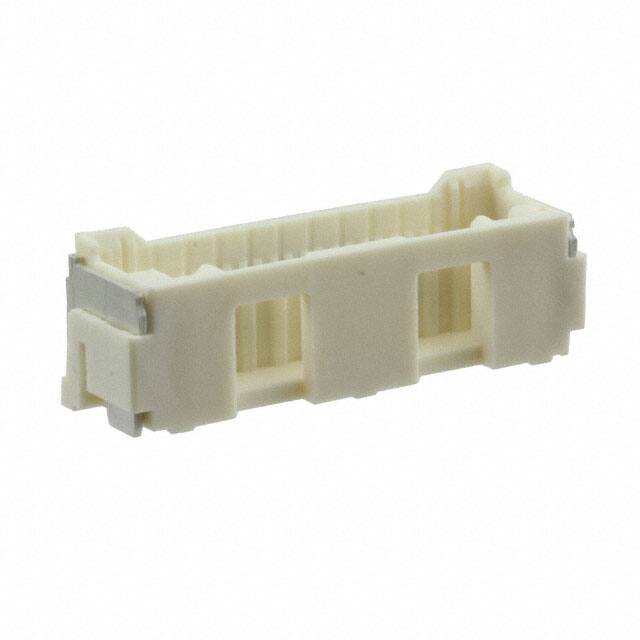

5025851270

Specifications

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

12

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Terminal

Solder

Contact Finish Thickness Mating

39.4μin 1.00μm

Style

Board to Cable/Wire

Contact Finish Mating

Tin

Seri

CLIK-Mate 502585

Insulation Color

Beige

Montaj Tipi

Surface Mount, Right Angle

Pitch Mating

0.059 1.50mm

Din Conformance

NO

Fabrika Tedarik Süresi

21 Weeks

Contact Finish Thickness Post

39.4μin 1.00μm

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Contact Type

Forked

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Pick and Place, Solder Retention

Total Number Of Contacts

12

Sıra Sayısı

1

Insulation Height

0.250 6.35mm

Connector Type

Receptacle

Mil Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Yayın Yılı

2010

Contact Gender

FEMALE

Number Of Positions Loaded

All

Filter Feature

NO

Contact Materials

Copper Alloy

Insulation Materials

Resin

Kurşunsuz Kodu

yes

Iec Conformance

NO
