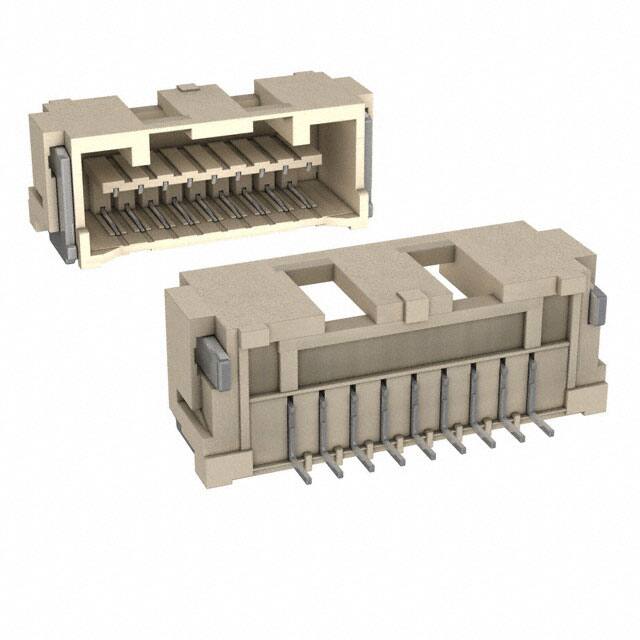

5025850970

Specifications

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Montaj

Surface Mount

Sıra Sayısı

1

Insulation Height

0.250 6.35mm

Connector Type

Receptacle

Mil Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Depth

7.3mm

Glow Wire Compliant

Non-compliant

Kurşunsuz Kodu

yes

Akım Değeri

2A

Iec Conformance

NO

Yayın Yılı

2010

Contact Gender

FEMALE

Number Of Positions Loaded

All

Filter Feature

NO

Contact Materials

Copper Alloy

Insulation Materials

Resin

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Contact Type

Forked

Fabrika Tedarik Süresi

21 Weeks

Contact Finish Thickness Post

39.4μin 1.00μm

Uzunluk

17.8mm

Özellikler

Pick and Place, Solder Retention

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

9

Terminal

Solder

Contact Finish Thickness Mating

39.4μin 1.00μm

Reach Svhc

No SVHC

Style

Board to Cable/Wire

Contact Finish Mating

Tin

Seri

CLIK-Mate 502585

Montaj Tipi

Surface Mount, Right Angle

Pitch Mating

0.059 1.50mm

Din Conformance

NO

Housing Color

Beige

Contact Resistance

20mOhm

Ambalaj

Tape & Reel (TR)
