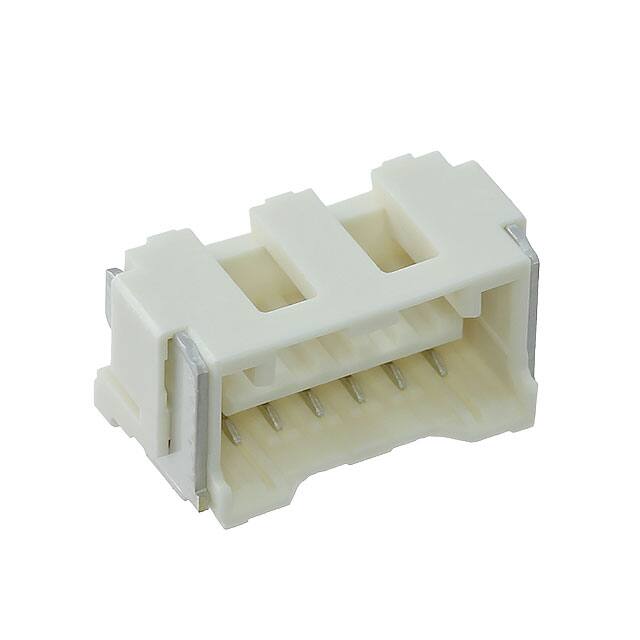

5025850670

Specifications

Contact Type

Forked

Özellikler

Pick and Place, Solder Retention

Sıra Sayısı

1

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Beige

Montaj Tipi

Surface Mount, Right Angle

Çalışma Sıcaklığı

-40°C~105°C

Total Number Of Contacts

6

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

FEMALE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Insulation Materials

Resin

Pozisyon Sayısı

6

Parça Durumu

Active

Mil Conformance

NO

Connector Type

Receptacle

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Filter Feature

NO

Ul Flammability Code

94V-0

Seri

CLIK-Mate 502585

Yayın Yılı

2010

Mixed Contacts

NO

Terminal

Solder

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Insulation Height

0.250 6.35mm

Fabrika Tedarik Süresi

21 Weeks
