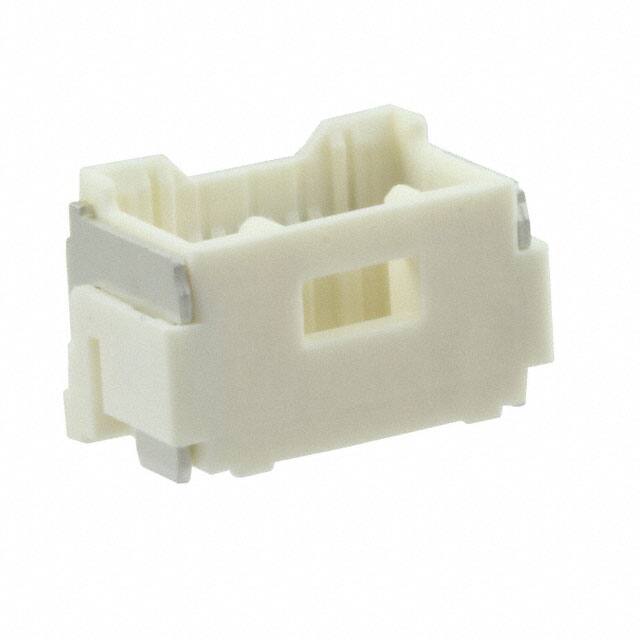

5025850570

Specifications

Fabrika Tedarik Süresi

21 Weeks

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Insulation Height

0.250 6.35mm

Seri

CLIK-Mate 502585

Yayın Yılı

2010

Terminal

Solder

Mixed Contacts

NO

Ul Flammability Code

94V-0

Filter Feature

NO

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

Connector Type

Receptacle

Mil Conformance

NO

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Pozisyon Sayısı

5

Din Conformance

NO

Insulation Materials

Resin

Contact Gender

FEMALE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

5

Insulation Color

Beige

Contact Finish Thickness Post

39.4μin 1.00μm

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Pick and Place, Solder Retention

Sıra Sayısı

1

Contact Type

Forked
