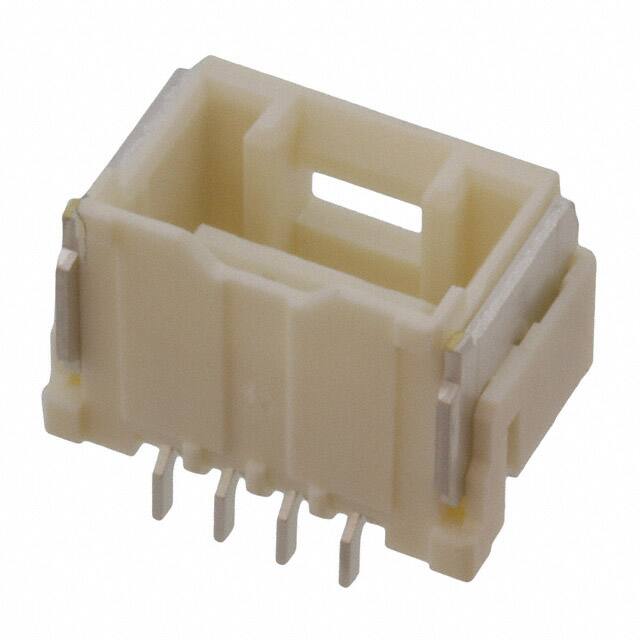

5025850470

Specifications

Insulation Height

0.250 6.35mm

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

21 Weeks

Mixed Contacts

NO

Terminal

Solder

Seri

CLIK-Mate 502585

Yayın Yılı

2010

Style

Board to Cable/Wire

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Filter Feature

NO

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Connector Type

Receptacle

Din Conformance

NO

Insulation Materials

Resin

Pozisyon Sayısı

4

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Total Number Of Contacts

4

Contact Finish Thickness Mating

39.4μin 1.00μm

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

FEMALE

Contact Type

Forked

Sıra Sayısı

1

Özellikler

Pick and Place, Solder Retention

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Beige
