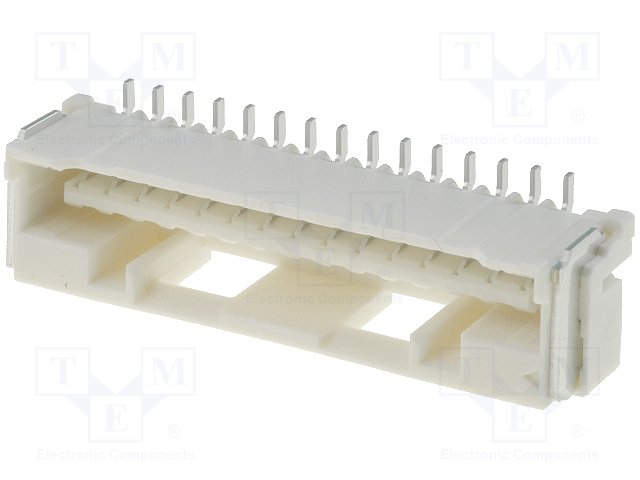

5025841570

Specifications

Style

Board to Cable/Wire

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

500VAC V

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Body Depth

0.285 inch

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Durability

30 Cycles

Ul Flammability Code

94V-0

Mixed Contacts

NO

Terminal

Solder

Seri

CLIK-Mate 502584

Yayın Yılı

2010

Plating Thickness

39μin

Polarization Key

POLARIZED HOUSING

Contact Gender

FEMALE

Contact Type

Forked

Özellikler

Pick and Place, Solder Retention

Body Breadth

0.25 inch

Montaj Tipi

Surface Mount

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Connector Type

Receptacle

Din Conformance

NO

Insulation Materials

Resin

Insulation Resistance

500000000Ohm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Contact Resistance

20mOhm

Parça Durumu

Active

Rated Current Signal

2A

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Insulation Height

0.285 7.25mm

Number Of Positions Loaded

All
