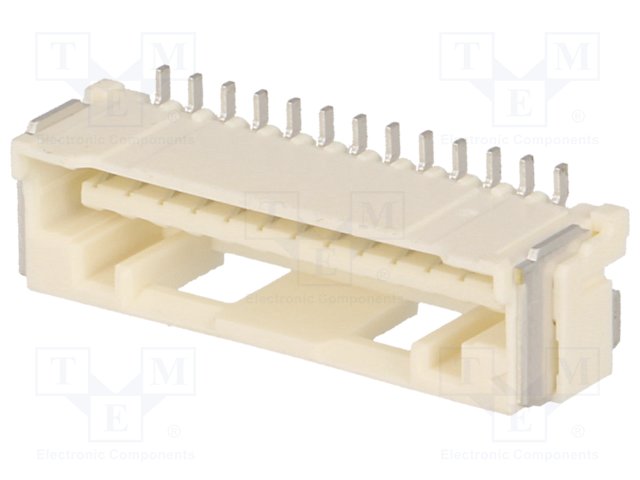

5025841370

Specifications

Connector Type

Receptacle

Insulation Resistance

500000000Ohm

Insulation Materials

Resin

Din Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Contact Resistance

20mOhm

Parça Durumu

Active

Rated Current Signal

2A

Plating Thickness

39μin

Polarization Key

POLARIZED HOUSING

Contact Gender

Female

Özellikler

Pick and Place, Solder Retention

Contact Type

Forked

HTS Kodu

8536.69.40.40

Montaj Tipi

Surface Mount

Body Breadth

0.25 inch

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Durability

30 Cycles

Ul Flammability Code

94V-0

Mixed Contacts

NO

Terminal

Solder

Seri

CLIK-Mate 502584

Yayın Yılı

2010

Style

Board to Cable/Wire

Number Of Contacts

13

Dielectric Withstanding Voltage

500VAC V

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Body Depth

0.285 inch

Reliability

COMMERCIAL

Mil Conformance

NO

Orientation

Vertical

Nominal Gerilim

100V

Number Of Pcb Rows

1

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm
