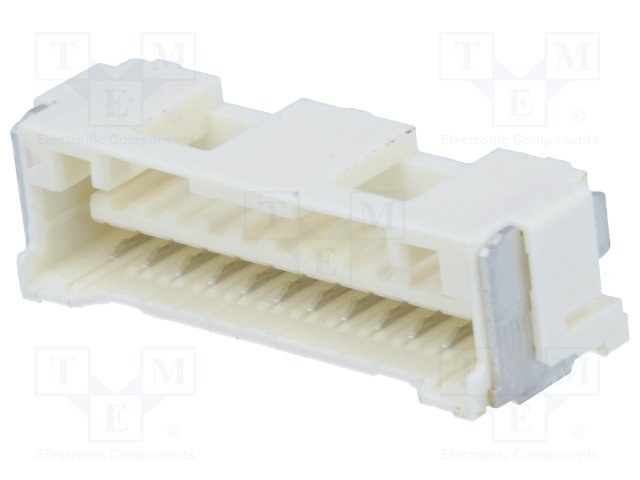

5025841270

Specifications

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Fabrika Tedarik Süresi

8 Weeks

Number Of Positions Loaded

All

Insulation Height

0.285 7.25mm

Body Length Or Diameter

0.878 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~105°C

Total Number Of Contacts

12

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Beige

ECCN Kodu

EAR99

Mating Contact Pitch

0.059 inch

Sıra Sayısı

1

Number Of Pcb Rows

1

Mil Conformance

NO

Reliability

COMMERCIAL

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

12

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

500VAC V

Style

Board to Cable/Wire

Body Depth

0.285 inch

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Durability

30 Cycles

Contact Materials

Copper Alloy

Number Of Conductors

ONE

Seri

CLIK-Mate 502584

Yayın Yılı

2010

Mixed Contacts

NO

Terminal

Solder

Ul Flammability Code

94V-0
