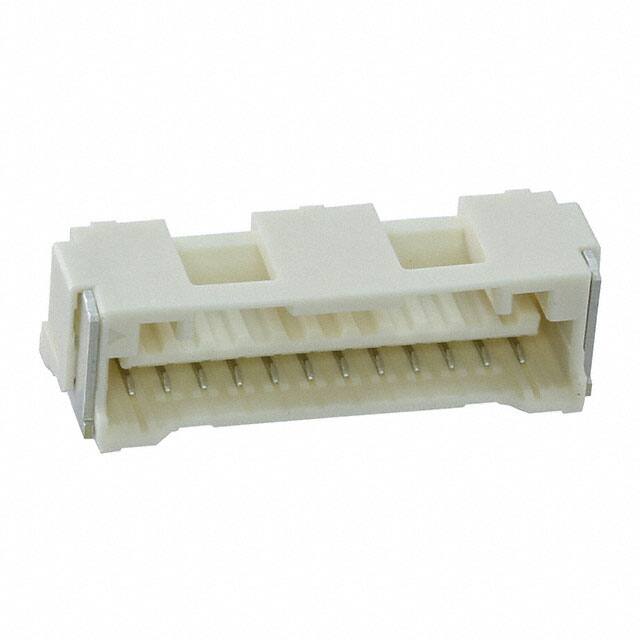

5025841260

Specifications

Insulation Height

0.285 7.25mm

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

8 Weeks

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Pozisyon Sayısı

12

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

12

Contact Finish Thickness Mating

39.4μin 1.00μm

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.878 inch

Sıra Sayısı

1

ECCN Kodu

EAR99

Mating Contact Pitch

0.059 inch

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Beige

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Durability

30 Cycles

Ul Flammability Code

94V-0

Mixed Contacts

NO

Terminal

Solder

Seri

CLIK-Mate 502584

Yayın Yılı

2016

Style

Board to Cable/Wire

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

500VAC V

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Body Depth

0.287 inch

Contact Finish Mating

Tin

Fastening Type

Latch Holder
