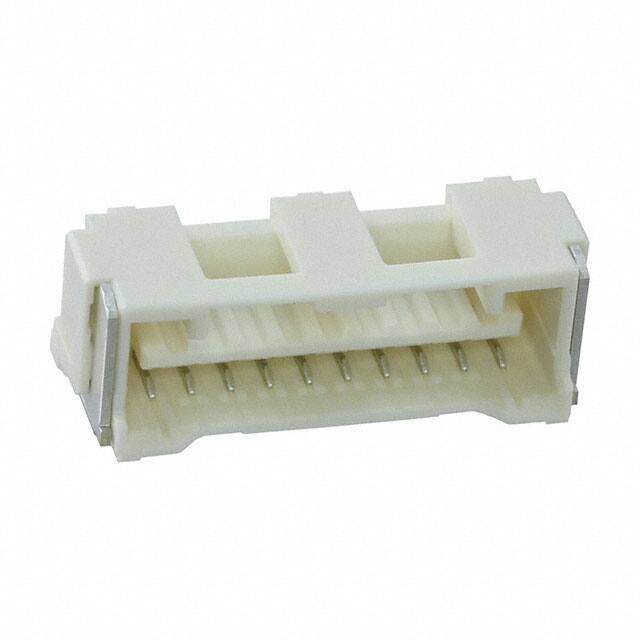

5025841070

Specifications

Insulation Height

0.285 7.25mm

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

9 Weeks

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Pozisyon Sayısı

10

Ambalaj

Tape & Reel (TR)

Reliability

COMMERCIAL

Mil Conformance

NO

Number Of Pcb Rows

1

Sıra Sayısı

1

Mating Contact Pitch

0.059 inch

Insulation Color

Beige

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

10

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.76 inch

Ul Flammability Code

94V-0

Terminal

Solder

Mixed Contacts

NO

Yayın Yılı

2010

Seri

CLIK-Mate 502584

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Durability

30 Cycles

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Body Depth

0.285 inch

Style

Board to Cable/Wire

Dielectric Withstanding Voltage

500VAC V

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Insulation Materials

Resin
