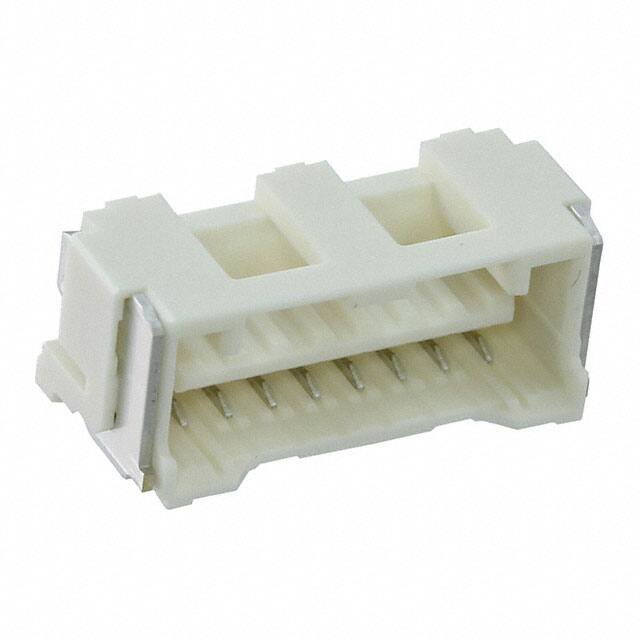

5025840870

Specifications

Connector Type

Receptacle

Insulation Resistance

500000000Ohm

Insulation Materials

Resin

Din Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Parça Durumu

Active

Contact Resistance

20mOhm

Rated Current Signal

2A

Plating Thickness

39μin

Polarization Key

POLARIZED HOUSING

Contact Gender

FEMALE

Özellikler

Pick and Place, Solder Retention

Contact Type

Forked

Montaj Tipi

Surface Mount

Body Breadth

0.25 inch

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Durability

30 Cycles

Ul Flammability Code

94V-0

Mixed Contacts

NO

Terminal

Solder

Seri

CLIK-Mate 502584

Yayın Yılı

2010

Style

Board to Cable/Wire

Dielectric Withstanding Voltage

500VAC V

Pcb Contact Pattern

RECTANGULAR

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Pozisyon Sayısı

8

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

8

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)
