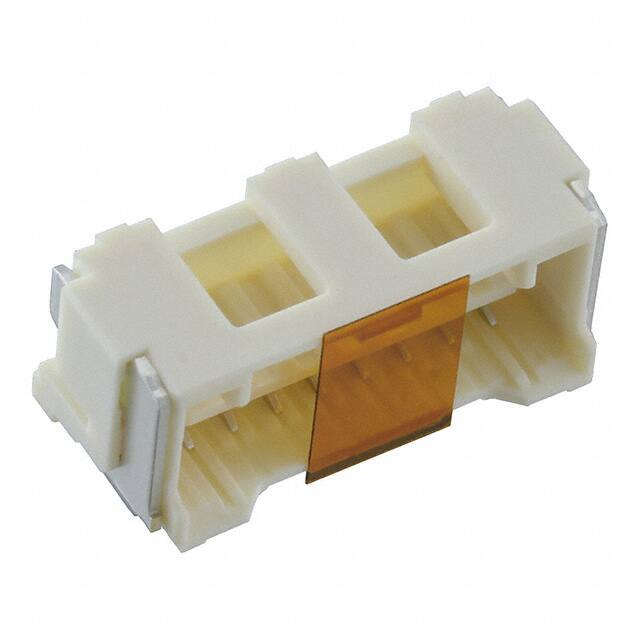

5025840860

Specifications

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Montaj

Surface Mount

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

Filter Feature

NO

Akım Değeri

2A

Uzunluk

16.3mm

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

9 Weeks

Glow Wire Compliant

Non-compliant

Number Of Positions Loaded

All

Insulation Height

0.285 7.25mm

Contact Finish Thickness Post

39.4μin 1.00μm

Mating Contact Pitch

0.059 inch

ECCN Kodu

EAR99

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

1

Depth

6.35mm

Nominal Gerilim

100V

Reliability

COMMERCIAL

Mil Conformance

NO

Orientation

Vertical

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

500VAC V

Number Of Contacts

8

Housing Color

Beige

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Yayın Yılı

2013

Seri

CLIK-Mate 502584

Terminal

Solder

Mixed Contacts

NO
