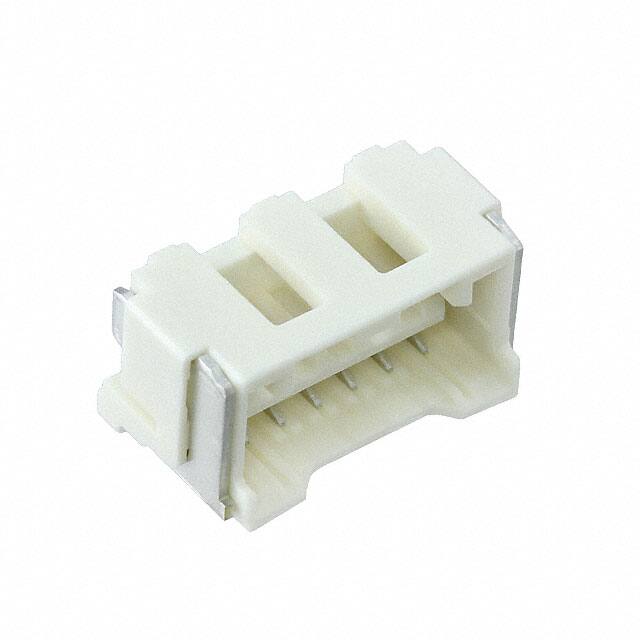

5025840670

Specifications

Çalışma Sıcaklığı

-40°C~105°C

Total Number Of Contacts

6

Contact Finish Thickness Mating

39.4μin 1.00μm

Body Length Or Diameter

0.524 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Beige

Mating Contact Pitch

0.059 inch

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

6

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Insulation Height

0.285 7.25mm

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

39μin

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Contact Type

Forked

Özellikler

Pick and Place, Solder Retention

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Body Breadth

0.25 inch

Montaj Tipi

Surface Mount

Connector Type

Receptacle

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Resistance

500000000Ohm

Din Conformance

NO

Insulation Materials

Resin

Rated Current Signal

2A

Parça Durumu

Active

Contact Resistance

20mOhm

Pcb Contact Pattern

RECTANGULAR
