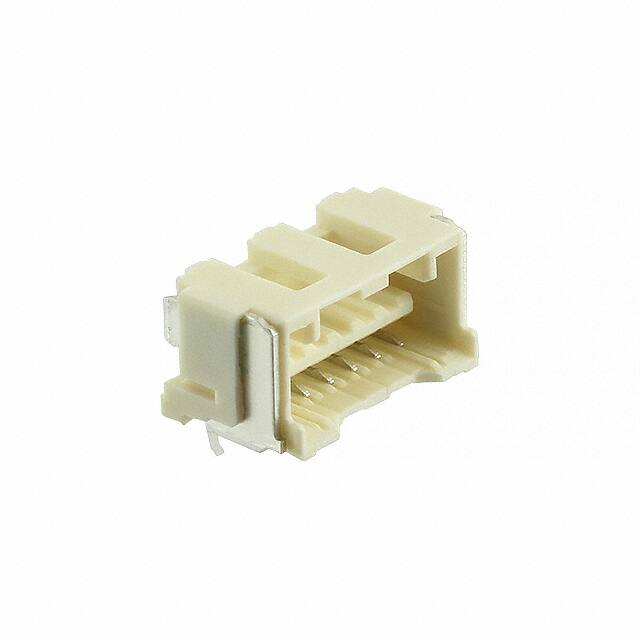

5025840660

Specifications

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

7 Weeks

Insulation Height

0.285 7.25mm

Number Of Positions Loaded

All

Mating Contact Pitch

0.059 inch

Insulation Color

Beige

Contact Finish Thickness Post

39.4μin 1.00μm

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.524 inch

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

6

Çalışma Sıcaklığı

-40°C~105°C

Pozisyon Sayısı

6

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

1

Mil Conformance

NO

Reliability

COMMERCIAL

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Body Depth

0.287 inch

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Style

Board to Cable/Wire

Dielectric Withstanding Voltage

500VAC V

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Mixed Contacts

NO

Yayın Yılı

2016

Seri

CLIK-Mate 502584

Ul Flammability Code

94V-0

Durability

30 Cycles

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Montaj Tipi

Surface Mount
