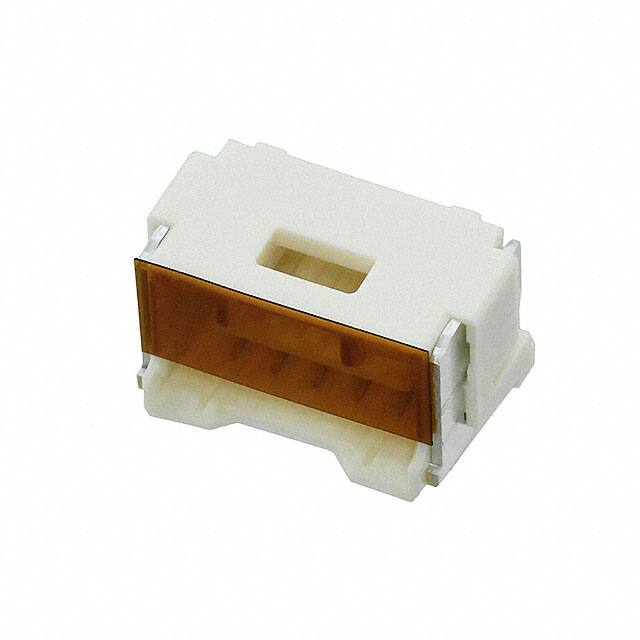

5025840560

Specifications

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

Material Flammability Rating

UL94 V-0

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Number Of Positions Loaded

All

Insulation Height

0.285 7.25mm

Fabrika Tedarik Süresi

12 Weeks

Sıra Sayısı

1

Insulation Color

Beige

Contact Finish Thickness Post

39.4μin 1.00μm

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

5

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

5

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Body Depth

0.287 inch

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Ul Flammability Code

94V-0

Seri

CLIK-Mate 502584

Yayın Yılı

2016

Mixed Contacts

NO

Terminal

Solder

Contact Materials

Copper Alloy

Number Of Conductors

ONE

Durability

30 Cycles

Özellikler

Pick and Place, Solder Retention

Contact Type

Forked

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Montaj Tipi

Surface Mount
