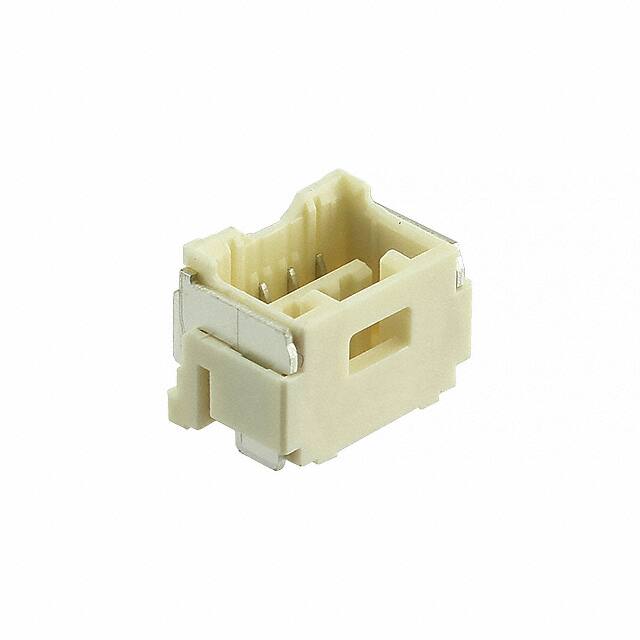

5025840470

Specifications

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Materials

Resin

Din Conformance

NO

Insulation Resistance

500000000Ohm

Rated Current Signal

2A

Contact Resistance

20mOhm

Parça Durumu

Active

Connector Type

Receptacle

Contact Type

Forked

Özellikler

Pick and Place, Solder Retention

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Body Breadth

0.25 inch

Montaj Tipi

Surface Mount

Plating Thickness

39μin

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Seri

CLIK-Mate 502584

Yayın Yılı

2010

Mixed Contacts

NO

Terminal

Solder

Contact Materials

Copper Alloy

Number Of Conductors

ONE

Durability

30 Cycles

Body Depth

0.285 inch

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

500VAC V

Style

Board to Cable/Wire

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

4

Reliability

COMMERCIAL

Mil Conformance

NO

Number Of Pcb Rows

1

Sıra Sayısı

1

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Beige

Mating Contact Pitch

0.059 inch
