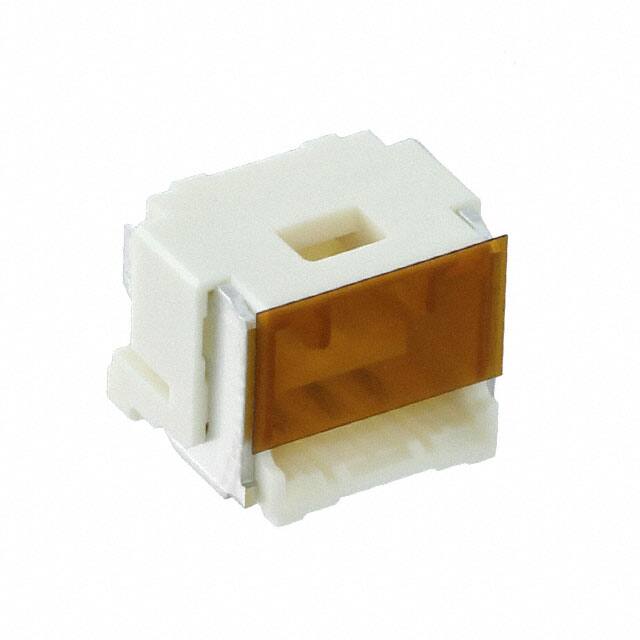

5025840360

Specifications

Connector Type

Receptacle

Rated Current Signal

2A

Parça Durumu

Active

Contact Resistance

20mOhm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Resistance

500000000Ohm

Din Conformance

NO

Insulation Materials

Resin

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Body Breadth

0.25 inch

Montaj Tipi

Surface Mount

Contact Type

Forked

Özellikler

Pick and Place, Solder Retention

Contact Materials

Copper Alloy

Number Of Conductors

ONE

Yayın Yılı

2016

Seri

CLIK-Mate 502584

Terminal

Solder

Mixed Contacts

NO

Ul Flammability Code

94V-0

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

500VAC V

Style

Board to Cable/Wire

Body Depth

0.287 inch

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Number Of Pcb Rows

1

Mil Conformance

NO

Reliability

COMMERCIAL

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~105°C

Total Number Of Contacts

3

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Finish Thickness Post

39.4μin 1.00μm
