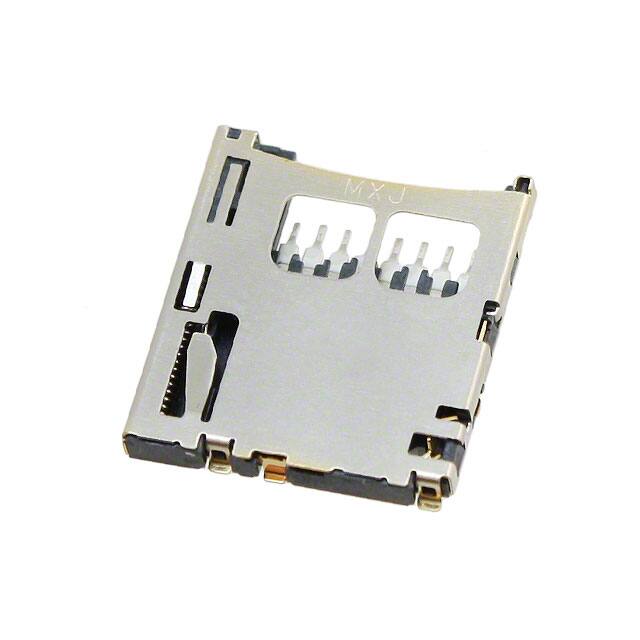

5025700893

Specifications

ECCN Kodu

EAR99

Mating Contact Pitch

0.043 inch

Card Type

Secure Digital - microSD™

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.543 inch

Total Number Of Contacts

8

Option

GENERAL PURPOSE

Bodyshell Style

SOCKET

Pozisyon Sayısı

10 (8 + 2)

Height Above Board

0.071 1.80mm

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Mil Conformance

NO

Reference Standard

UL

Mounting Feature

Normal, Standard - Top

Iec Conformance

NO

Operating Temperature Min

-25°C

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

14 Weeks

Contact Pattern

RECTANGULAR

Body Breadth

0.071 inch

Montaj Tipi

Surface Mount, Right Angle

HTS Kodu

8536.69.40.40

Insulator Color

BLACK

Özellikler

Switch

Number Of Ports

1

Contact Gender

FEMALE

Plating Thickness

20μin

Contact Finish Thickness

20.0μin 0.51μm

Operating Temperature Max

85°C

Contact Resistance

100mOhm

Parça Durumu

Active

Rated Current Signal

0.5A

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Din Conformance

NO

Insulation Resistance

1000000000Ohm

Insertion Removal Method

Push In, Push Out
