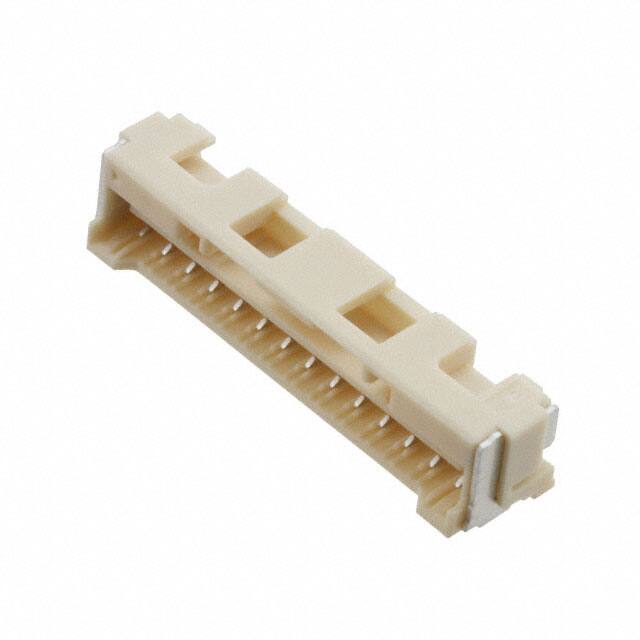

5024941470

Specifications

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Body Depth

0.335 inch

Terminal Adımı

2mm

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Ul Flammability Code

94V-0

Seri

CLIK-Mate 502494

Yayın Yılı

2012

Mixed Contacts

NO

Terminal

Solder

Contact Materials

Copper Alloy

JESD-609 Kodu

e3

Number Of Conductors

ONE

Özellikler

Pick and Place, Solder Retention

HTS Kodu

8536.69.40.40

Contact Type

Forked

Additional Feature

CLIK-MATE, POLARIZED

Montaj Tipi

Surface Mount, Right Angle

Body Breadth

0.27 inch

Plating Thickness

39μin

Contact Gender

FEMALE

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Materials

Resin

Din Conformance

NO

Parça Durumu

Active

Connector Type

Receptacle

Iec Conformance

NO

Pitch Mating

0.079 2.00mm

Material Flammability Rating

UL94 V-0

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Number Of Positions Loaded

All

Insulation Height

0.270 6.86mm

Fabrika Tedarik Süresi

21 Weeks

Sıra Sayısı

1

Insulation Color

Natural
