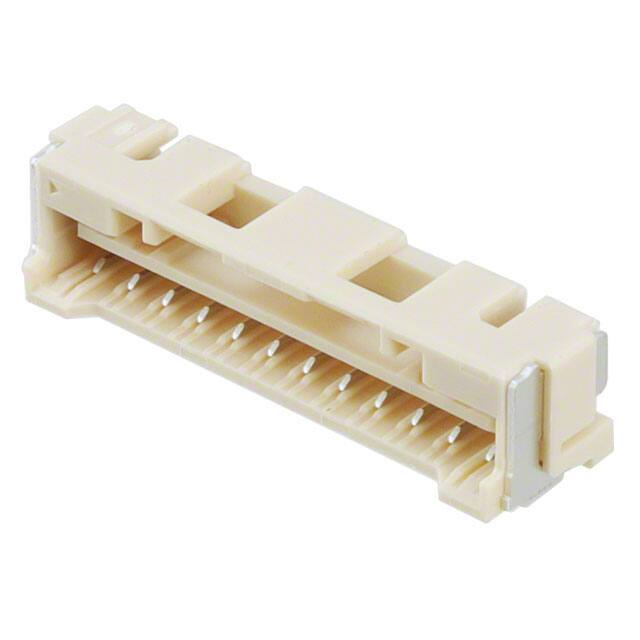

5024941270

Specifications

Contact Materials

Copper Alloy

Number Of Conductors

ONE

JESD-609 Kodu

e3

Seri

CLIK-Mate 502494

Yayın Yılı

2010

Mixed Contacts

NO

Terminal

Solder

Ul Flammability Code

94V-0

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Terminal Adımı

2mm

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Body Depth

0.335 inch

Connector Type

Receptacle

Parça Durumu

Active

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Din Conformance

NO

Insulation Materials

Resin

Contact Gender

FEMALE

Plating Thickness

39μin

Montaj Tipi

Surface Mount, Right Angle

Body Breadth

0.27 inch

Özellikler

Pick and Place, Solder Retention

Contact Type

Forked

Fabrika Tedarik Süresi

12 Weeks

Number Of Positions Loaded

All

Insulation Height

0.270 6.86mm

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Pitch Mating

0.079 2.00mm

Iec Conformance

NO

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)
