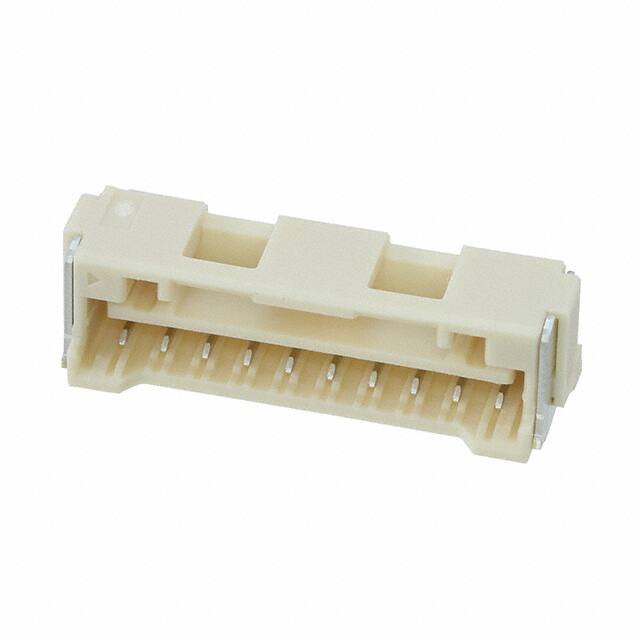

5024941070

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.945 inch

Contact Gender

FEMALE

Total Number Of Contacts

10

Contact Finish Thickness Mating

39.4μin 1.00μm

Plating Thickness

39μin

Çalışma Sıcaklığı

-40°C~105°C

Body Breadth

0.27 inch

Mating Contact Pitch

0.079 inch

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Natural

Contact Type

Forked

Sıra Sayısı

1

Özellikler

Pick and Place, Solder Retention

Connector Type

Receptacle

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Orientation

Right Angle

Parça Durumu

Active

Insulation Materials

Resin

Pozisyon Sayısı

10

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Pcb Contact Pattern

RECTANGULAR

Montaj

Surface Mount

Terminal Adımı

2.0066mm

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Pitch Mating

0.079 2.00mm

Body Depth

0.335 inch

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Fabrika Tedarik Süresi

21 Weeks

Insulation Height

0.270 6.86mm

Number Of Conductors

ONE

Contact Materials

Copper Alloy
