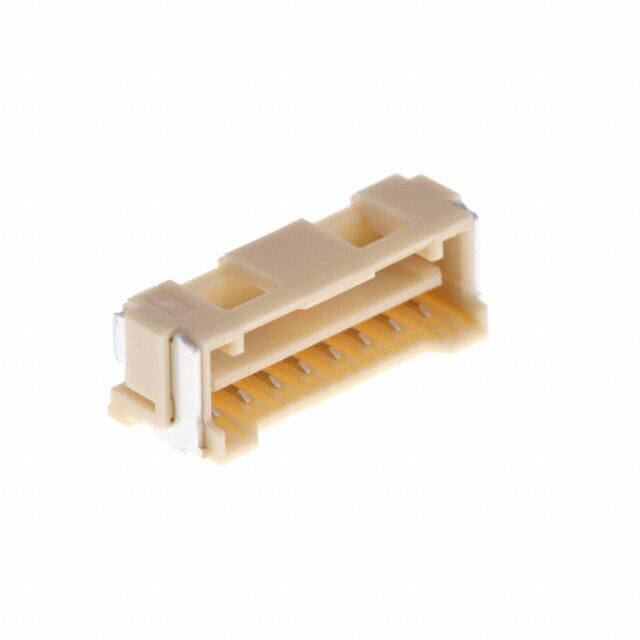

5024940870

Specifications

Plating Thickness

39μin

Contact Gender

FEMALE

Contact Type

Forked

Özellikler

Pick and Place, Solder Retention

Additional Feature

CLIK-MATE, POLARIZED

Body Breadth

0.27 inch

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Receptacle

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Materials

Resin

Din Conformance

NO

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Body Depth

0.335 inch

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Terminal Adımı

2mm

Contact Materials

Copper Alloy

Number Of Conductors

ONE

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Yayın Yılı

2012

Seri

CLIK-Mate 502494

Terminal

Solder

Mixed Contacts

NO

Çalışma Sıcaklığı

-40°C~105°C

Total Number Of Contacts

8

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Natural

Mating Contact Pitch

0.079 inch

ECCN Kodu

EAR99

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

1
