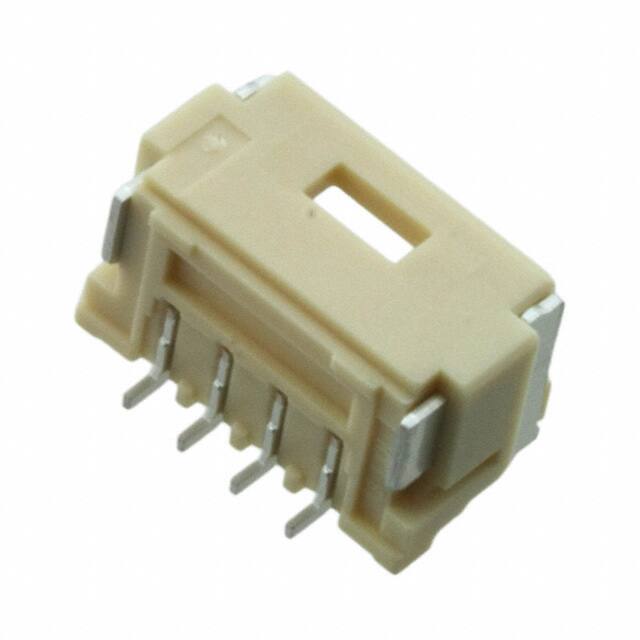

5024940470

Specifications

Connector Type

Receptacle

Insulation Materials

Resin

Din Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Parça Durumu

Active

Plating Thickness

39μin

Contact Gender

FEMALE

Özellikler

Pick and Place, Solder Retention

Contact Type

Forked

Montaj Tipi

Surface Mount, Right Angle

Body Breadth

0.27 inch

Additional Feature

CLIK-MATE, POLARIZED

Number Of Conductors

ONE

JESD-609 Kodu

e3

Contact Materials

Copper Alloy

Mixed Contacts

NO

Terminal

Solder

Seri

CLIK-Mate 502494

Yayın Yılı

2010

Style

Board to Cable/Wire

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Body Depth

0.335 inch

Terminal Adımı

2mm

Reliability

COMMERCIAL

Mil Conformance

NO

Number Of Pcb Rows

1

Pozisyon Sayısı

4

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

4

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Mating Contact Pitch

0.079 inch

Insulation Color

Natural

Contact Finish Thickness Post

39.4μin 1.00μm
