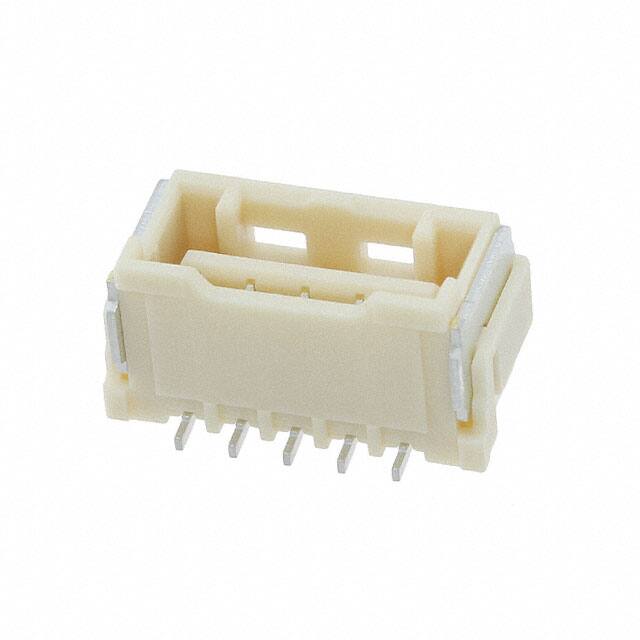

5024430570

Specifications

Contact Finish Thickness Post

39.4μin 1.00μm

Mating Contact Pitch

0.079 inch

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

1

Depth

6.85mm

Orientation

Vertical

Mil Conformance

NO

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Montaj

Surface Mount

Pitch Mating

0.079 2.00mm

Iec Conformance

NO

Voltage Rated Ac

250V

Filter Feature

NO

Akım Değeri

3A

Uzunluk

14mm

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Ac

250V

Fabrika Tedarik Süresi

14 Weeks

Glow Wire Compliant

Non-compliant

Number Of Positions Loaded

All

Insulation Height

0.293 7.44mm

Montaj Tipi

Surface Mount

Body Breadth

0.27 inch

Özellikler

Solder Retention

Contact Type

Forked

Contact Gender

Female

Flammability Rating

UL94 V-0

Contact Resistance

20mOhm

Parça Durumu

Active

Housing Material

Thermoplastic

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Din Conformance

NO

Insulation Materials

Resin

Connector Type

Receptacle
