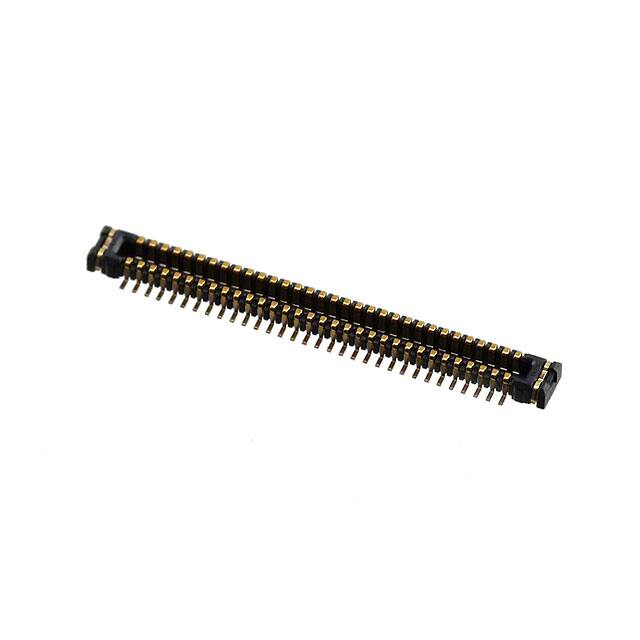

5024306410

Specifications

Pozisyon Sayısı

64

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Height Above Board

0.031 0.80mm

Number Of Pcb Rows

2

Mil Conformance

NO

Reliability

COMMERCIAL

ECCN Kodu

EAR99

Sıra Sayısı

2

Pcb Contact Row Spacing

1.7018 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.593 inch

Total Number Of Contacts

64

Option

GENERAL PURPOSE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

10 Weeks

Contact Pattern

RECTANGULAR

Reference Standard

UL

Iec Conformance

NO

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Contact Resistance

80mOhm

Operating Temperature Max

85°C

Parça Durumu

Obsolete

Stack Height Mating

1mm

Rated Current Signal

0.3A

Insulation Resistance

100000000Ohm

Din Conformance

NO

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Pitch

0.016 0.40mm

Connector Type

Plug, Outer Shroud Contacts

Montaj Tipi

Surface Mount

Body Breadth

0.081 inch

Additional Feature

SLIMSTACK, LOW PROFILE

Özellikler

Solder Retention

Insulator Color

BLACK

HTS Kodu

8536.69.40.40

Contact Gender

MALE

Contact Finish Thickness

4.00μin 0.100μm

Plating Thickness

8μin
