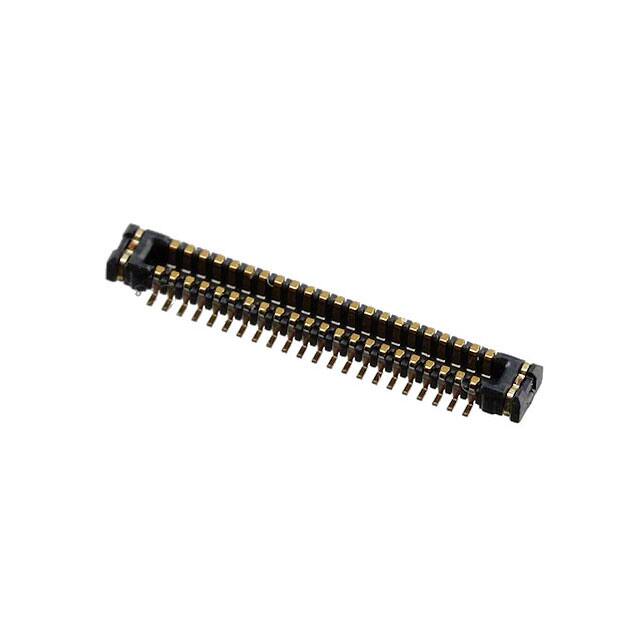

5024304410

Specifications

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Height Above Board

0.031 0.80mm

Pozisyon Sayısı

44

Reliability

COMMERCIAL

Mil Conformance

NO

Number Of Pcb Rows

2

Sıra Sayısı

2

Pcb Contact Row Spacing

1.7018 mm

ECCN Kodu

EAR99

Option

GENERAL PURPOSE

Total Number Of Contacts

44

Body Length Or Diameter

0.435 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Iec Conformance

NO

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Pitch

0.016 0.40mm

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Din Conformance

NO

Insulation Resistance

100000000Ohm

Rated Current Signal

0.3A

Stack Height Mating

1mm

Parça Durumu

Obsolete

Contact Resistance

80mOhm

Operating Temperature Max

85°C

Connector Type

Plug, Outer Shroud Contacts

Özellikler

Solder Retention

HTS Kodu

8536.69.40.40

Insulator Color

BLACK

Additional Feature

SLIMSTACK, LOW PROFILE

Montaj Tipi

Surface Mount

Body Breadth

0.081 inch

Contact Finish Thickness

4.00μin 0.100μm

Plating Thickness

8μin

Contact Gender

MALE

Ul Flammability Code

94V-0
