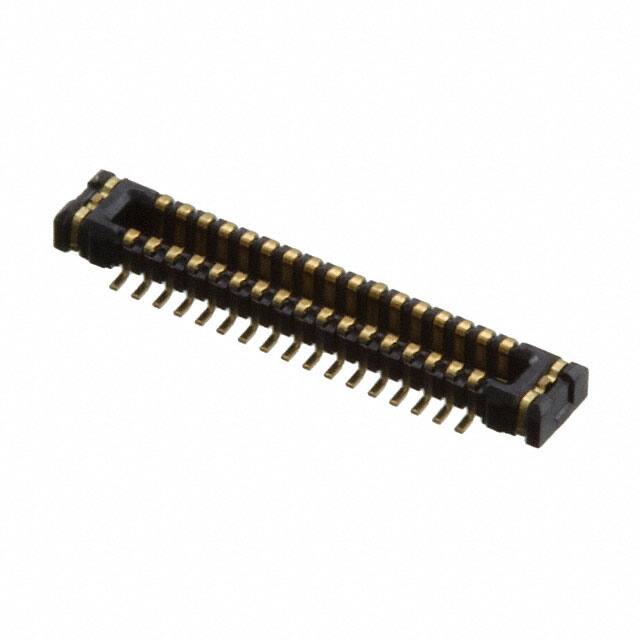

5024303410

Specifications

Operating Temperature Max

85°C

Contact Resistance

80mOhm

Parça Durumu

Obsolete

Stack Height Mating

1mm

Rated Current Signal

0.3A

Insulation Resistance

100000000Ohm

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Pozisyon Sayısı

34

Pitch

0.016 0.40mm

Height Above Board

0.031 0.80mm

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Connector Type

Plug, Outer Shroud Contacts

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Body Breadth

0.081 inch

Montaj Tipi

Surface Mount

Insulator Color

BLACK

Özellikler

Solder Retention

Pcb Contact Row Spacing

1.7018 mm

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.357 inch

Contact Gender

FEMALE

Total Number Of Contacts

34

Plating Thickness

8μin

Contact Finish Thickness

4.00μin 0.100μm

Board Mounting Option

FITTING NAIL

Yayın Yılı

2013

Seri

SlimStack 502430

Durability

30 Cycles

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Contact Materials

NOT SPECIFIED

Contact Pattern

RECTANGULAR

Contact Style

BELLOWED TYPE

Reference Standard

UL

Body Depth

0.031 inch

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING
