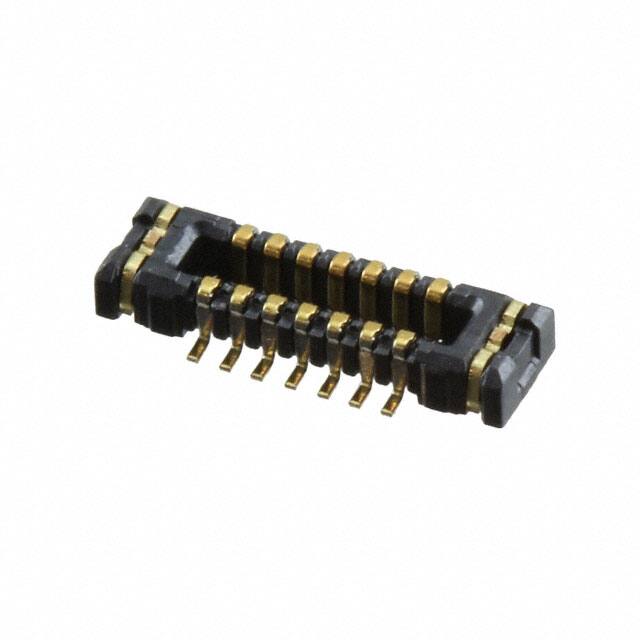

5024301410

Specifications

Sıra Sayısı

2

Pcb Contact Row Spacing

1.7018 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Total Number Of Contacts

14

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Height Above Board

0.031 0.80mm

Pozisyon Sayısı

14

Number Of Pcb Rows

2

Mil Conformance

NO

Reliability

COMMERCIAL

Reference Standard

UL

Iec Conformance

NO

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

8 Weeks

Contact Pattern

RECTANGULAR

Additional Feature

SLIMSTACK, LOW PROFILE

Montaj Tipi

Surface Mount

Body Breadth

0.081 inch

Özellikler

Solder Retention

Insulator Color

BLACK

Contact Gender

MALE

Contact Finish Thickness

4.00μin 0.100μm

Plating Thickness

8μin

Rated Current Signal

0.3A

Stack Height Mating

1mm

Parça Durumu

Obsolete

Contact Resistance

80mOhm

Operating Temperature Max

85°C

Pitch

0.016 0.40mm

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Din Conformance

NO

Insulation Resistance

100000000Ohm

Connector Type

Plug, Outer Shroud Contacts

Contact Style

BELLOWED TYPE

Body Depth

0.031 inch

Mounting Option1

LOCKING
