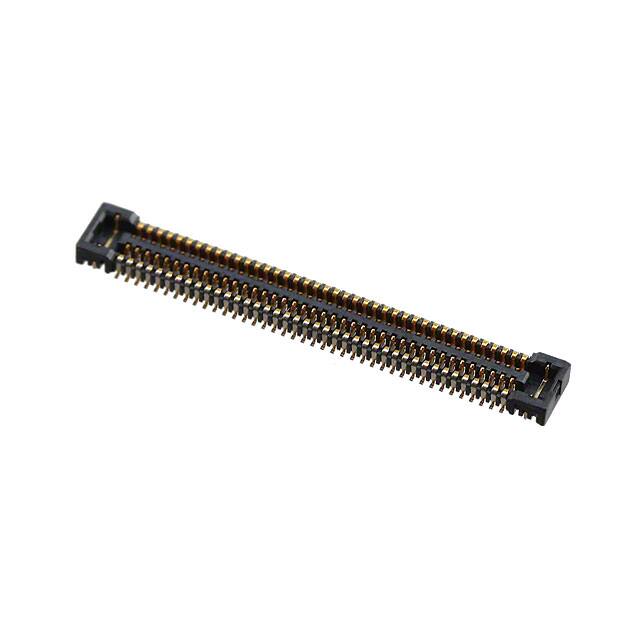

5024268010

Specifications

Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

ROHS3 Compliant

Operating Temperature Min

-30°C

Filter Feature

NO

Iec Conformance

NO

Reference Standard

UL

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

2

Height Above Board

0.039 1.00mm

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

80

Option

GENERAL PURPOSE

Total Number Of Contacts

80

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

ECCN Kodu

EAR99

Contact Materials

PHOSPHOR BRONZE

Number Of Conductors

ONE

JESD-609 Kodu

e4

Durability

30 Cycles

Ul Flammability Code

94V-0

Seri

SlimStack 502426

Yayın Yılı

2015

Mixed Contacts

NO

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

350VAC V

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Body Depth

0.039 inch

Connector Type

Receptacle, Center Strip Contacts

Pitch

0.016 0.40mm

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Din Conformance

NO

Insulation Resistance

100000000Ohm

Rated Current Signal

0.3A

Stack Height Mating

1mm
