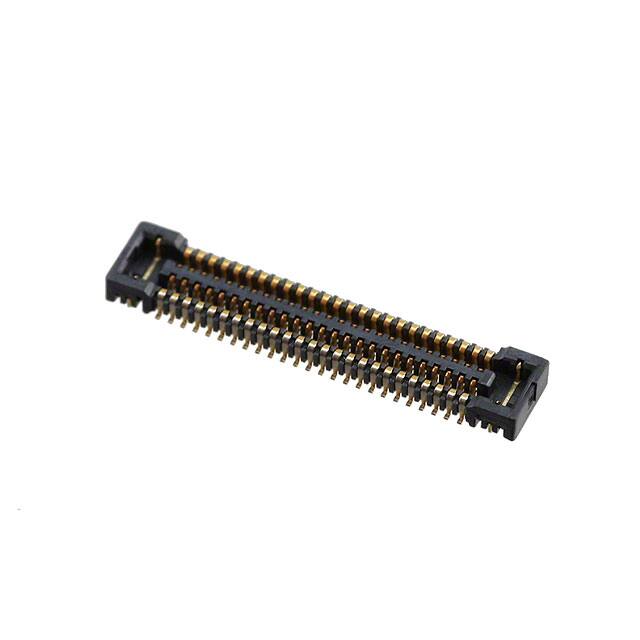

5024265010

Specifications

Pozisyon Sayısı

50

Height Above Board

0.039 1.00mm

Ambalaj

Cut Tape (CT)

Contact Finish

Gold

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

2

Sıra Sayısı

2

Total Number Of Contacts

50

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

7 Weeks

Iec Conformance

NO

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Operating Temperature Min

-30°C

Filter Feature

NO

Din Conformance

NO

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Insulation Resistance

100000000Ohm

Pitch

0.016 0.40mm

Stack Height Mating

1mm

Operating Temperature Max

85°C

Contact Resistance

80mOhm

Parça Durumu

Obsolete

Rated Current Signal

0.3A

Connector Type

Receptacle, Center Strip Contacts

Insulator Color

BLACK

Özellikler

Solder Retention

Montaj Tipi

Surface Mount

Additional Feature

SLIMSTACK, LOW PROFILE

Plating Thickness

4μin

Contact Finish Thickness

4.00μin 0.100μm

Polarization Key

POLARIZED HOUSING

Contact Gender

FEMALE

Ul Flammability Code

94V-0

Mixed Contacts

NO

Seri

SlimStack 502426
