Specifications
- Ul Flammability Code
- 94V-0
- Mixed Contacts
- NO
- Yayın Yılı
- 2015
- Seri

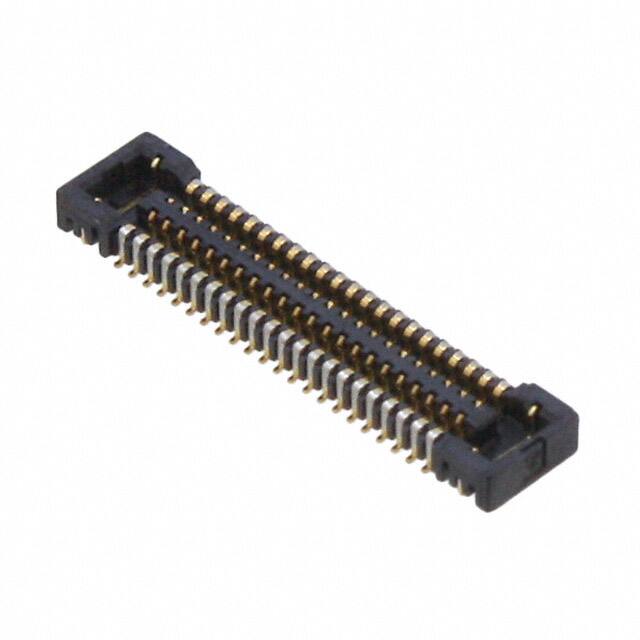

- SlimStack 502426
- JESD-609 Kodu
- e4
- Number Of Conductors
- ONE
- Contact Materials
- PHOSPHOR BRONZE
- Durability
- 30 Cycles
- Body Depth
- 0.039 inch
- Pcb Contact Pattern
- RECTANGULAR
- Dielectric Withstanding Voltage
- 350VAC V
- Mounting Option1
- LOCKING
- Insulation Materials
- GLASS FILLED LIQUID CRYSTAL POLYMER
- Din Conformance
- NO
- Insulation Resistance
- 100000000Ohm
- Pitch
- 0.016 0.40mm
- Stack Height Mating
- 1mm
- Parça Durumu
- Obsolete
- Operating Temperature Max
- 85°C
- Contact Resistance
- 80mOhm
- Rated Current Signal
- 0.3A
- Connector Type
- Receptacle, Center Strip Contacts
- Insulator Color
- BLACK
- Özellikler
- Solder Retention
- Montaj Tipi
- Surface Mount
- Additional Feature
- SLIMSTACK, LOW PROFILE
- Plating Thickness
- 4μin
- Contact Finish Thickness
- 4.00μin 0.100μm
- Polarization Key
- POLARIZED HOUSING
- Contact Gender
- FEMALE
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Contact Pattern
- RECTANGULAR
- Iec Conformance
- NO
- REACH Uyumluluk Kodu
- compliant
- Reference Standard
- UL
- RoHS Durumu
- RoHS Compliant
- Operating Temperature Min
- -30°C
- Filter Feature
- NO
- Pozisyon Sayısı
- 44
- Height Above Board
- 0.039 1.00mm
