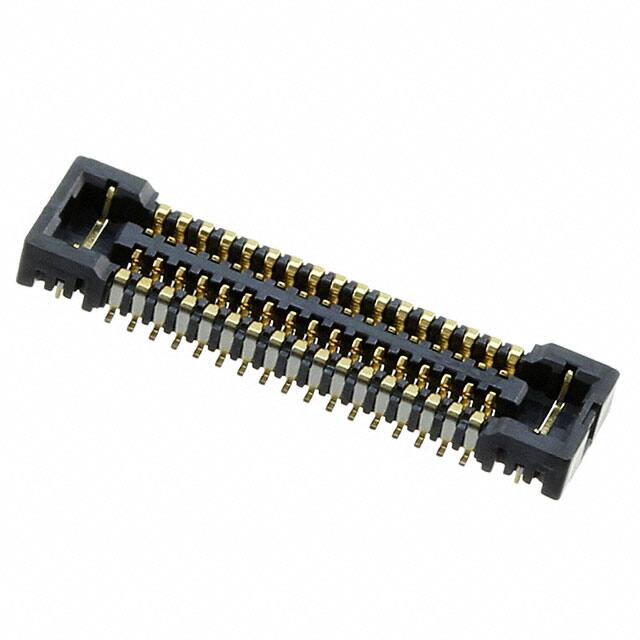

5024263410

Specifications

Montaj Tipi

Surface Mount

Insulator Color

BLACK

Özellikler

Solder Retention

Sıra Sayısı

2

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

FEMALE

Total Number Of Contacts

34

Plating Thickness

4μin

Contact Finish Thickness

4.00μin 0.100μm

Option

GENERAL PURPOSE

Operating Temperature Max

85°C

Contact Resistance

80mOhm

Parça Durumu

Obsolete

Stack Height Mating

1mm

Rated Current Signal

0.3A

Insulation Resistance

100000000Ohm

Din Conformance

NO

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Pozisyon Sayısı

34

Height Above Board

0.039 1.00mm

Pitch

0.016 0.40mm

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

2

Connector Type

Receptacle, Center Strip Contacts

Reliability

COMMERCIAL

Mil Conformance

NO

Reference Standard

UL

Iec Conformance

NO

Body Depth

0.039 inch

Mounting Option1

LOCKING

Operating Temperature Min

-30°C

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

350VAC V

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Yayın Yılı

2013
