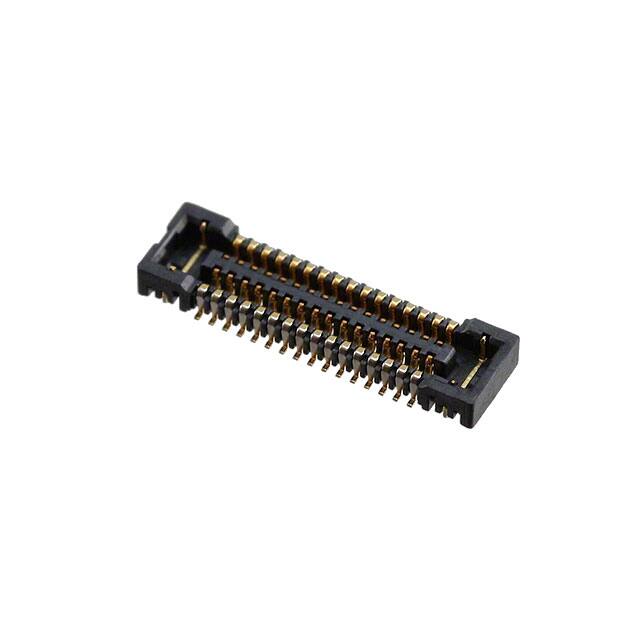

5024263210

Specifications

Body Depth

0.039 inch

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

350VAC V

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Ul Flammability Code

94V-0

Seri

SlimStack 502426

Yayın Yılı

2015

Mixed Contacts

NO

Contact Materials

PHOSPHOR BRONZE

JESD-609 Kodu

e4

Number Of Conductors

ONE

Durability

30 Cycles

Insulator Color

BLACK

HTS Kodu

8536.69.40.40

Özellikler

Solder Retention

Additional Feature

SLIMSTACK, LOW PROFILE

Montaj Tipi

Surface Mount

Plating Thickness

4μin

Contact Finish Thickness

4.00μin 0.100μm

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Pitch

0.016 0.40mm

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Din Conformance

NO

Insulation Resistance

100000000Ohm

Rated Current Signal

0.3A

Operating Temperature Max

85°C

Contact Resistance

80mOhm

Parça Durumu

Obsolete

Stack Height Mating

1mm

Connector Type

Receptacle, Center Strip Contacts

Iec Conformance

NO

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Operating Temperature Min

-30°C

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

6 Weeks
