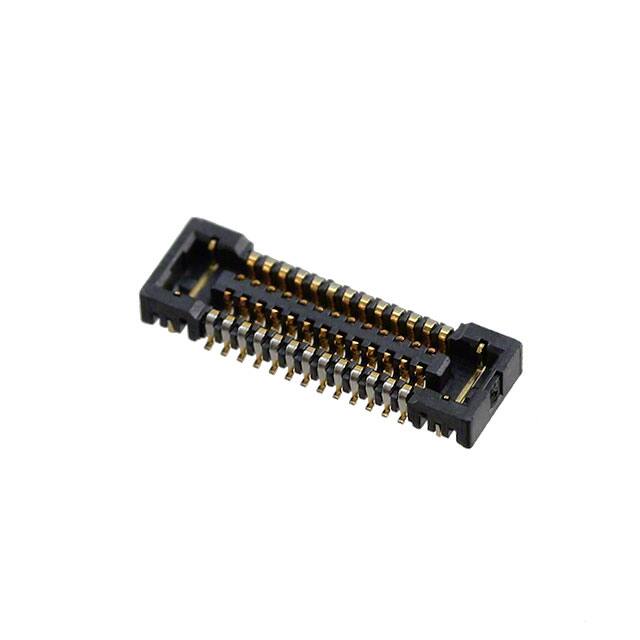

5024262610

Specifications

Body Depth

0.039 inch

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

350VAC V

Pcb Contact Pattern

RECTANGULAR

Seri

SlimStack 502426

Yayın Yılı

2015

Mixed Contacts

NO

Ul Flammability Code

94V-0

Durability

30 Cycles

Contact Materials

PHOSPHOR BRONZE

Number Of Conductors

ONE

JESD-609 Kodu

e4

Additional Feature

SLIMSTACK, LOW PROFILE

Montaj Tipi

Surface Mount

Özellikler

Solder Retention

HTS Kodu

8536.69.40.40

Insulator Color

BLACK

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness

4.00μin 0.100μm

Plating Thickness

4μin

Rated Current Signal

0.3A

Operating Temperature Max

85°C

Contact Resistance

80mOhm

Parça Durumu

Obsolete

Stack Height Mating

1mm

Pitch

0.016 0.40mm

Din Conformance

NO

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Insulation Resistance

100000000Ohm

Connector Type

Receptacle, Center Strip Contacts

Reference Standard

UL

Iec Conformance

NO

Filter Feature

NO

Operating Temperature Min

-30°C

RoHS Durumu

ROHS3 Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

8 Weeks

Contact Pattern

RECTANGULAR
