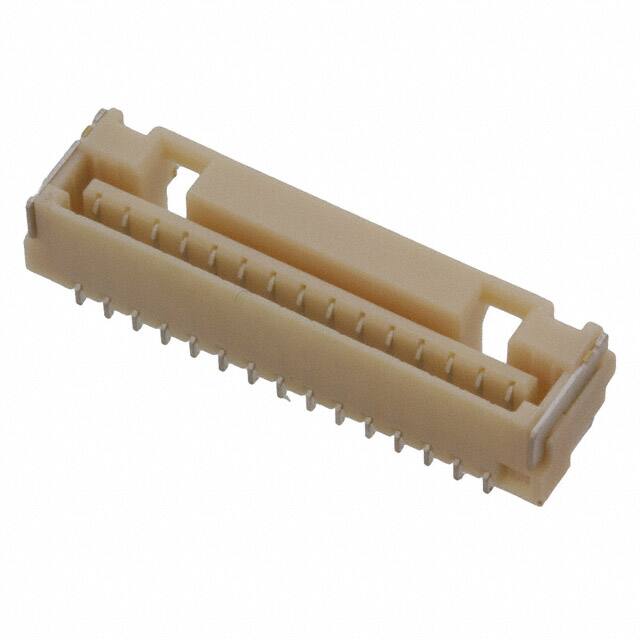

5023861570

Specifications

ECCN Kodu

EAR99

Insulation Height

0.215 5.45mm

Contact Materials

Copper Alloy

Current Rating Amps

1A

Mixed Contacts

NO

Contact Type

Forked

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Sıra Sayısı

1

Pitch Mating

0.049 1.25mm

Insulation Materials

Resin

Parça Durumu

Active

Fabrika Tedarik Süresi

20 Weeks

Yayın Yılı

2015

Style

Board to Cable/Wire

HTS Kodu

8536.69.40.40

Material Flammability Rating

UL94 V-0

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Connector Type

Receptacle

Terminal

Solder

Seri

CLIK-Mate 502386

Pozisyon Sayısı

15

Din Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Iec Conformance

NO

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Filter Feature

NO

Insulation Color

Natural

Fastening Type

Latch Holder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Kurşunsuz Kodu

yes

Mil Conformance

NO

Total Number Of Contacts

15

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

FEMALE

Çalışma Sıcaklığı

-40°C~105°C
