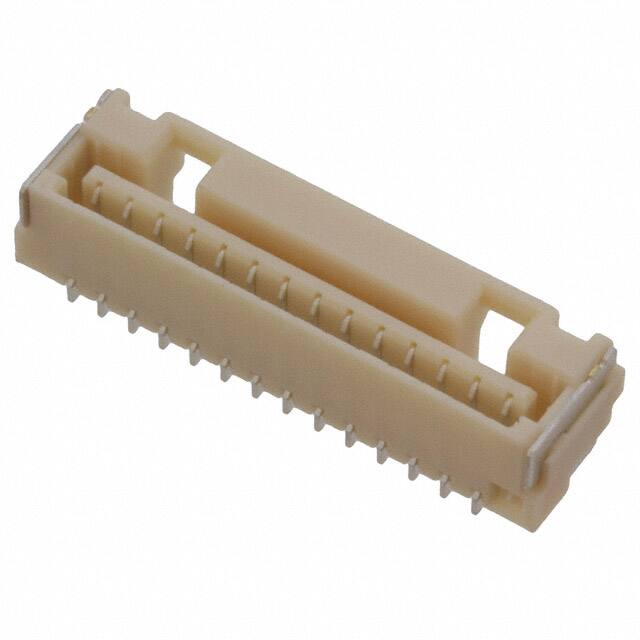

5023861470

Specifications

Contact Materials

Copper Alloy

Current Rating Amps

1A

Mixed Contacts

NO

Additional Feature

CLIK-MATE, POLARIZED

Contact Type

Forked

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

1

Number Of Positions Loaded

All

Insulation Height

0.215 5.45mm

Style

Board to Cable/Wire

Yayın Yılı

2010

Fabrika Tedarik Süresi

20 Weeks

Material Flammability Rating

UL94 V-0

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Pitch Mating

0.049 1.25mm

Insulation Materials

Resin

Parça Durumu

Active

Din Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Iec Conformance

NO

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Connector Type

Receptacle

Terminal

Solder

Seri

CLIK-Mate 502386

Pozisyon Sayısı

14

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Color

Natural

Filter Feature

NO

Fastening Type

Latch Holder

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

14

Mil Conformance

NO

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Contact Gender

FEMALE

Contact Finish Mating

Tin
