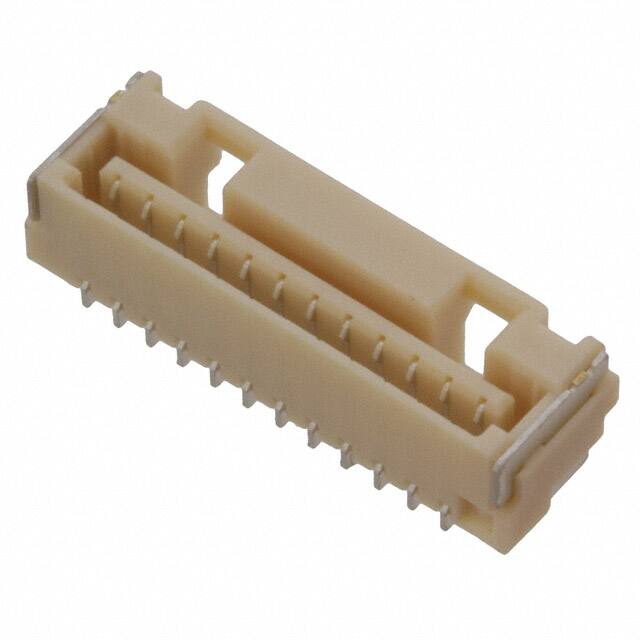

5023861270

Specifications

Iec Conformance

NO

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

Seri

CLIK-Mate 502386

Pozisyon Sayısı

12

Terminal

Solder

Connector Type

Receptacle

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

12

Mil Conformance

NO

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Contact Gender

FEMALE

Fastening Type

Latch Holder

Filter Feature

NO

Insulation Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Sıra Sayısı

1

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Contact Type

Forked

Current Rating Amps

1A

Mixed Contacts

NO

Contact Materials

Copper Alloy

Insulation Height

0.215 5.45mm

Material Flammability Rating

UL94 V-0

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Fabrika Tedarik Süresi

20 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2010

Parça Durumu

Active

Pitch Mating

0.049 1.25mm

Insulation Materials

Resin
