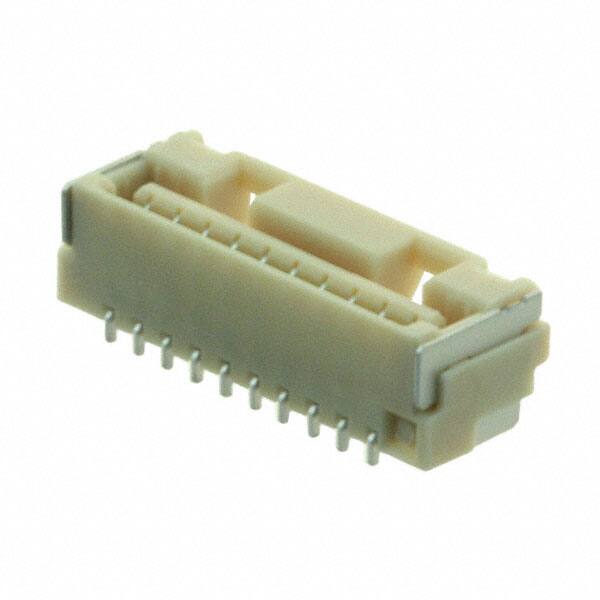

5023861070

Specifications

Parça Durumu

Active

Insulation Materials

Resin

Pitch Mating

0.049 1.25mm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Material Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

20 Weeks

Yayın Yılı

2010

Style

Board to Cable/Wire

Insulation Height

0.215 5.45mm

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Forked

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

1A

Mixed Contacts

NO

Contact Materials

Copper Alloy

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Contact Gender

FEMALE

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Kurşunsuz Kodu

yes

Mil Conformance

NO

Total Number Of Contacts

10

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Fastening Type

Latch Holder

Insulation Color

Natural

Filter Feature

NO

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

10

Seri

CLIK-Mate 502386

Connector Type

Receptacle

Terminal

Solder

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Iec Conformance

NO
