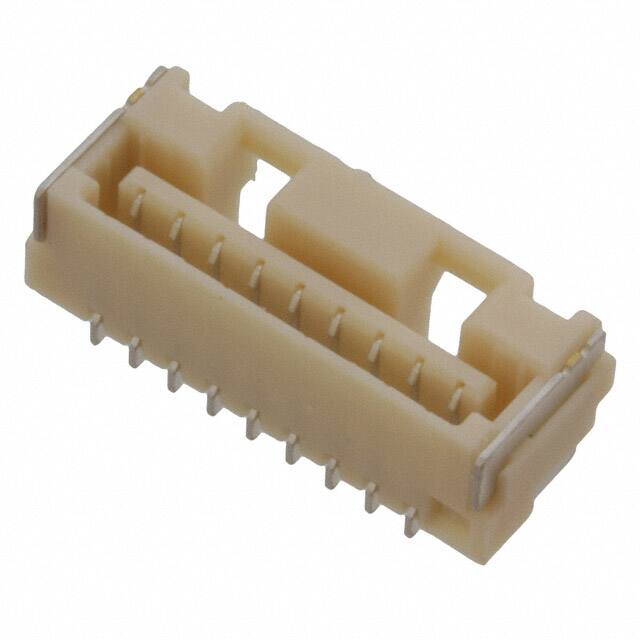

5023860970

Specifications

Max Voltage Rating Ac

50V

Orientation

Right Angle

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2013

Style

Board to Cable/Wire

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Material Flammability Rating

UL94 V-0

Insulation Materials

Resin

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Uzunluk

14.6mm

Contact Materials

Copper Alloy

Mixed Contacts

NO

Contact Type

Forked

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Sıra Sayısı

1

Reach Svhc

No SVHC

Insulation Height

0.215 5.45mm

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Material

Thermoplastic

Depth

4.55mm

Housing Color

Natural

Contact Resistance

20mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Voltage Rated Ac

50V

Filter Feature

NO

Fastening Type

Latch Holder

Contact Gender

FEMALE

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Mil Conformance

NO

Glow Wire Compliant

Non-compliant

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Din Conformance

NO

Montaj Tipi

Surface Mount, Right Angle
