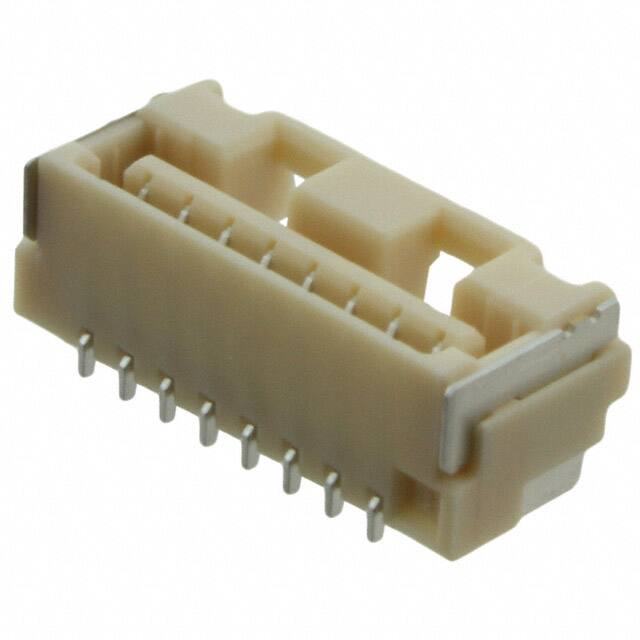

5023860870

Specifications

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Contact Gender

FEMALE

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Kurşunsuz Kodu

yes

Mil Conformance

NO

Total Number Of Contacts

8

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Latch Holder

Insulation Color

Natural

Filter Feature

NO

JESD-609 Kodu

e3

Iec Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

Pozisyon Sayısı

8

Seri

CLIK-Mate 502386

Terminal

Solder

Connector Type

Receptacle

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Yayın Yılı

2010

Fabrika Tedarik Süresi

20 Weeks

Parça Durumu

Active

Insulation Materials

Resin

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

Sıra Sayısı

1

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Contact Type

Forked

Additional Feature

CLIK-MATE, POLARIZED

Mixed Contacts

NO

Current Rating Amps

1A

Contact Materials

Copper Alloy

Insulation Height

0.215 5.45mm
