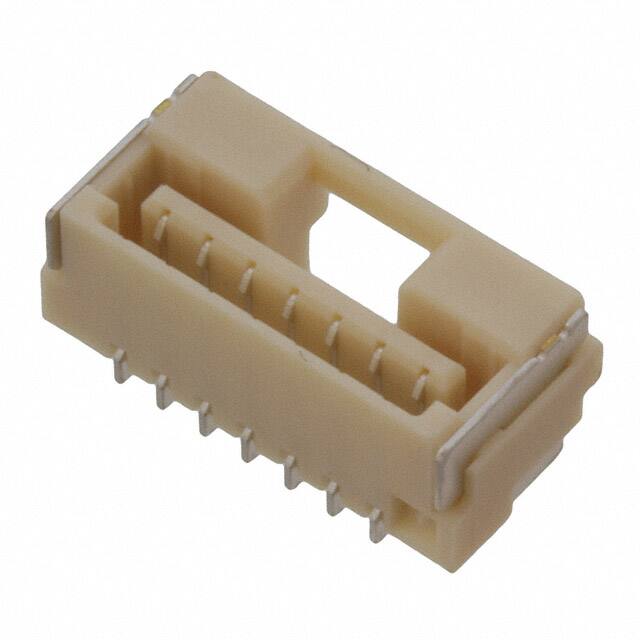

5023860770

Specifications

Reference Standard

UL

Mating Contact Pitch

0.049 inch

Insulation Height

0.215 5.45mm

Mixed Contacts

NO

Current Rating Amps

1A

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Forked

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.049 1.25mm

Insulation Materials

Resin

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Yayın Yılı

2015

Fabrika Tedarik Süresi

20 Weeks

Material Flammability Rating

UL94 V-0

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Connector Type

Receptacle

Terminal

Solder

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Seri

CLIK-Mate 502386

Pozisyon Sayısı

7

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

Iec Conformance

NO

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Fastening Type

Latch Holder

Insulation Color

Natural

Filter Feature

NO

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

7
