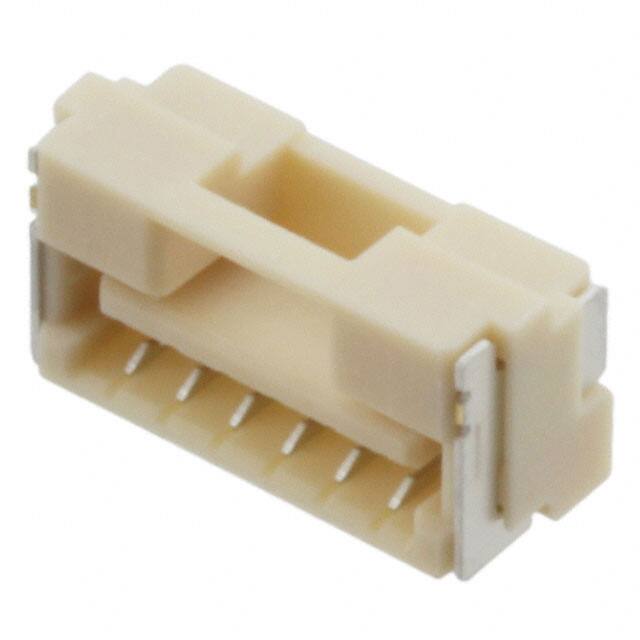

5023860670

Specifications

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Materials

Resin

Dielectric Withstanding Voltage

700VAC V

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Mixed Contacts

NO

Number Of Conductors

ONE

Body Length Or Diameter

0.427 inch

Reference Standard

UL

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Contact Gender

FEMALE

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Fastening Type

Latch Holder

Filter Feature

NO

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Pozisyon Sayısı

6

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

11 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2010

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Forked

Current Rating Amps

1A

Contact Materials

Copper Alloy

Mating Contact Pitch

0.049 inch

Insulation Height

0.215 5.45mm

Contact Resistance

20mOhm

Mounting Option1

LOCKING

Contact Finish Thickness Post

39.4μin 1.00μm
