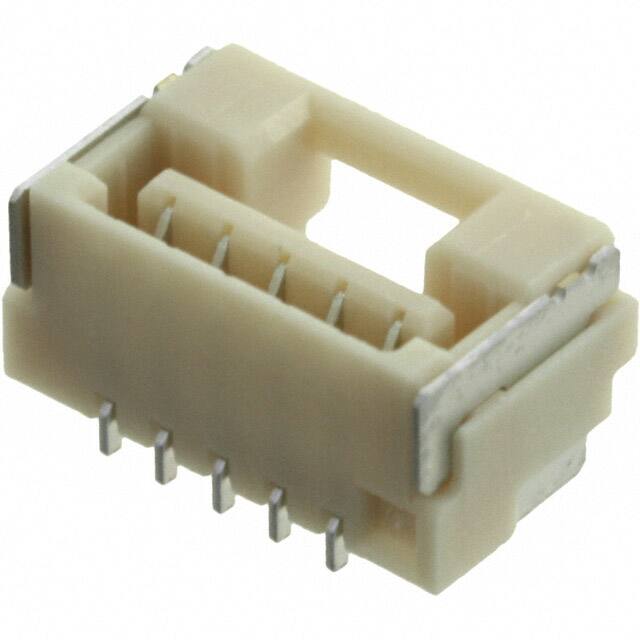

5023860570

Specifications

Insulation Materials

Resin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Body Length Or Diameter

0.378 inch

Reference Standard

UL

Dielectric Withstanding Voltage

700VAC V

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Number Of Conductors

ONE

Mixed Contacts

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Contact Gender

FEMALE

Fastening Type

Latch Holder

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Number Of Pcb Rows

1

Pozisyon Sayısı

5

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.049 1.25mm

Material Flammability Rating

UL94 V-0

Yayın Yılı

2010

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

20 Weeks

ECCN Kodu

EAR99

Mating Contact Pitch

0.049 inch

Insulation Height

0.215 5.45mm

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Forked

Current Rating Amps

1A

Contact Materials

Copper Alloy

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

5
